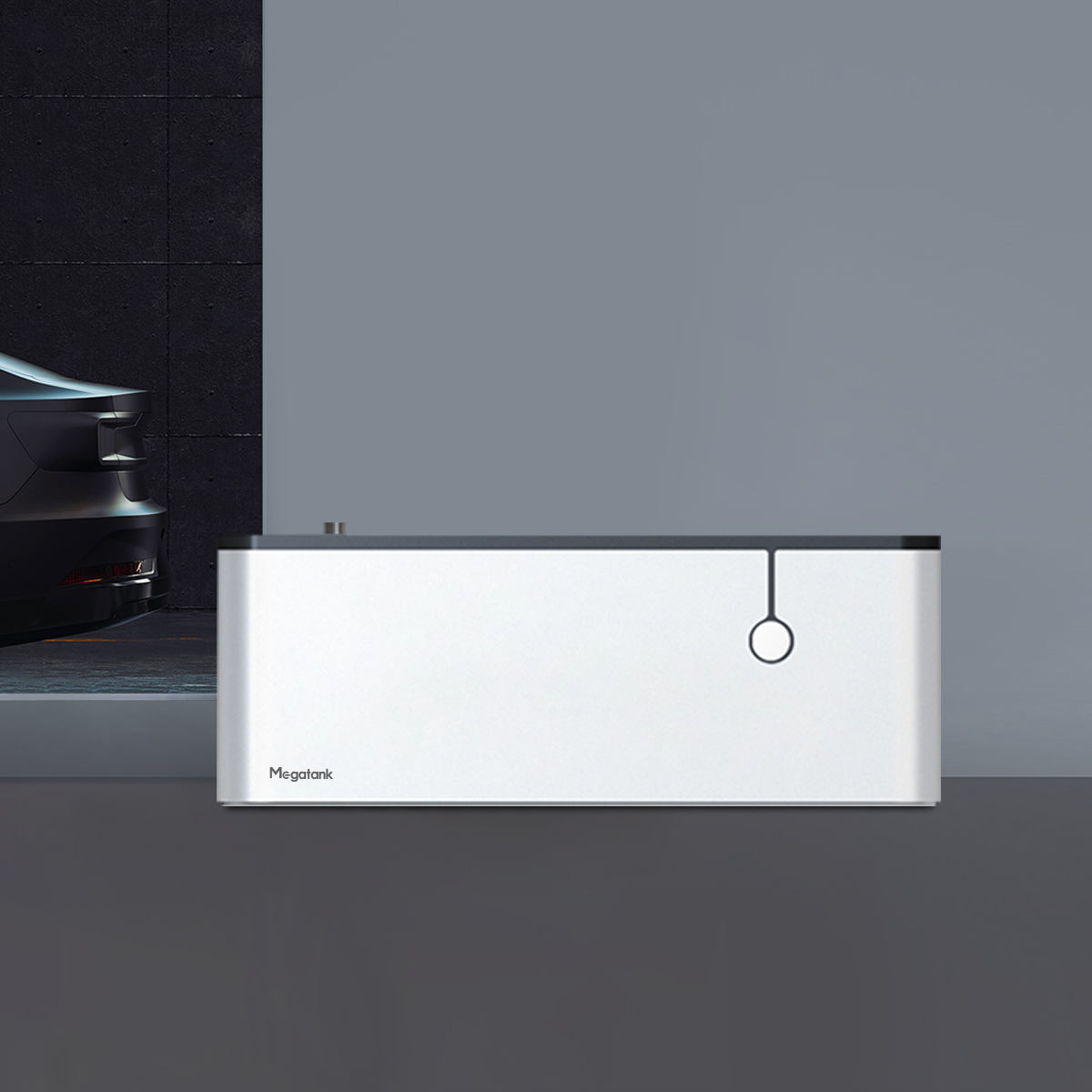

GLAR Series Energy Storage System LiFePO4 Battery

Highlights

• High Energy Density
• Long service life: >3000cycles
• Max. 1C charge and dicharge rate
• Build-in BMS with Safety Protection
• Cell balance function
• Bluetooth App for real time battery monitoring
• Expansion: up to 2 units in series
• Metal case,excellent heat dissipation, more safety


Specifications

• Battery nominal voltage：25.6V
• Rated capacity (AH)：100Ah@25 ℃, 0.5C
• Energy (Wh)：2560wh@25℃,0.5C
• Discharge voltage range：21.6V-28.8V
• Charge voltage range：27.6V-28.8V
• Charging mode：CC-CV
• Recommended Charge/Discharge current：50A
• Max. Continuous Charge/Discharge current：100A
• Peak current (A)：300A@25℃＜400ms
• Cycle life：>3000 cycles
• Dimension：330x172x215mm
• Weight：22kg
• IP class：21
• Installation method：Rack mounted / Floor mounted
• Bluetooth APP：Yes
• Connection in series (Maximum)：2 pcs (voltage difference <0.3V)
• Terminal stud：M6
• BMS Protection：Over voltage, under voltage, short circuit, overload, overcurrent, over temperature, low temperature protection, etc.
• Cooling mode：Natural cooling
• Humidity：15%-85%
• Operating temperature:Charge：0℃~+55℃, Discharge:-20℃~55℃
• Recommended operating temperature：Charge：-5℃~40℃, Discharge：-5℃~40℃, Storage：20°C~45°C / 1month0°C~35°C / 3months*
• Certificate：UN38.3
