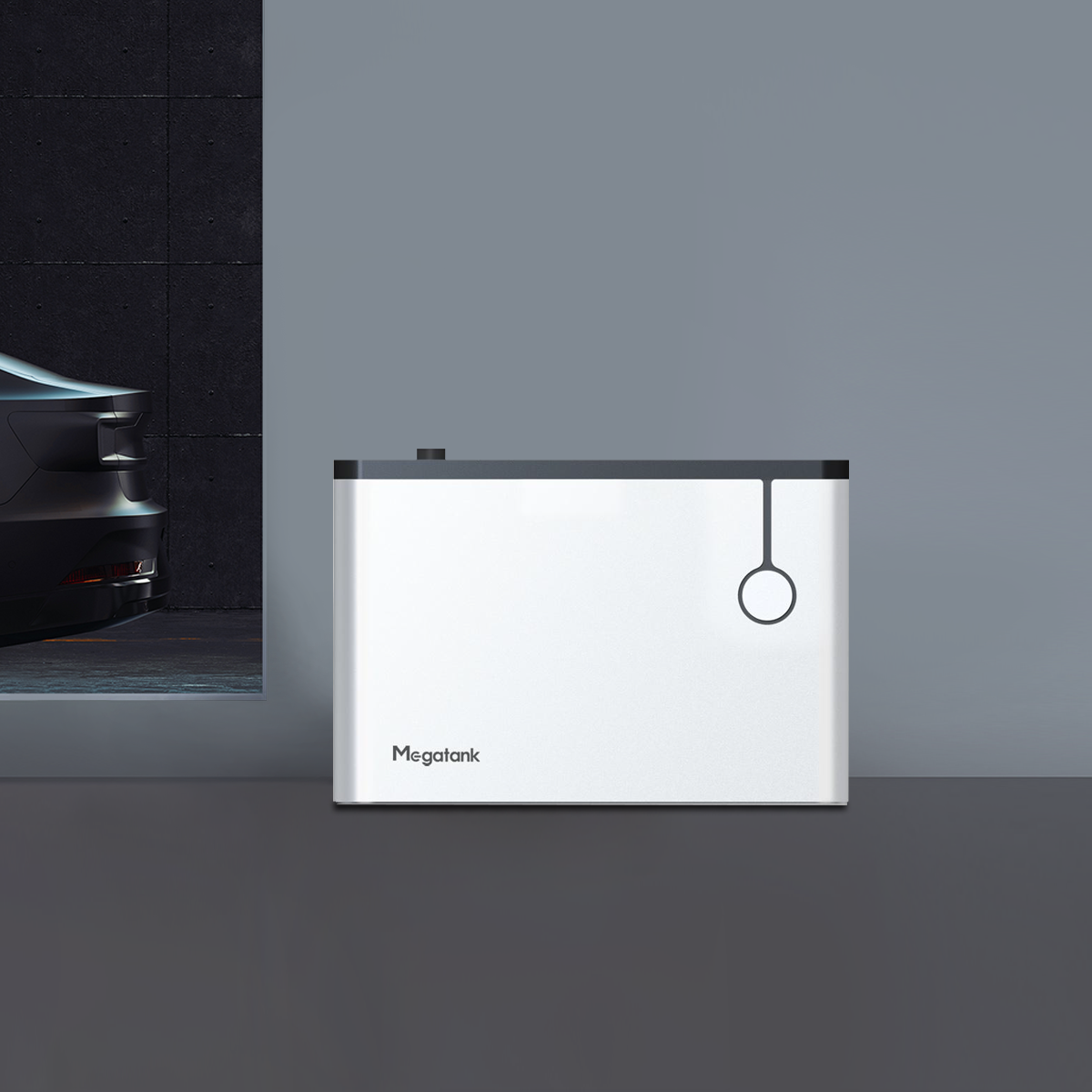

GLAR24100 Series Energy Storage System LiFePO4 Battery

Highlights

• A-grade qood brand prismatici FePO4 cells
• ≥3000 cycles @70% DOD(25°C, 0.5C)
• Built-in BMS protection system
• Bluetooth App for real time battery monitoring
• Cell balance function
• Max 2 battery packs can be connected in series
• Easy installation and maintenance free
• Metal case, excellent heat dissipation, more safety

Specifications

• Battery nominal voltage：25.6V
• Rated capacity (kwh)：2.56kwh@25 ℃, 0.5C
• Discharge voltage range：22.4.6V-28.8V
• Charge voltage range：27.6V-28.8V
• Charging mode：CC-CV
• Recommended Charge/Discharge current：50A
• Max. Continuous Charge/Discharge current：100A
• Peak current (A)：300A,400ms
• Dimension：256*302*166mm
• Weight：22kg
• IP class：21
• Bluetooth APP：Yes
• Battery packs in series： 2 units(The voltage difference between the batteries<3V)
• Battery packs in parallel：Yes (The voltage difference between the batteries<3V)
• Cooling：Natural cooling
• Certificate：UN38.3
